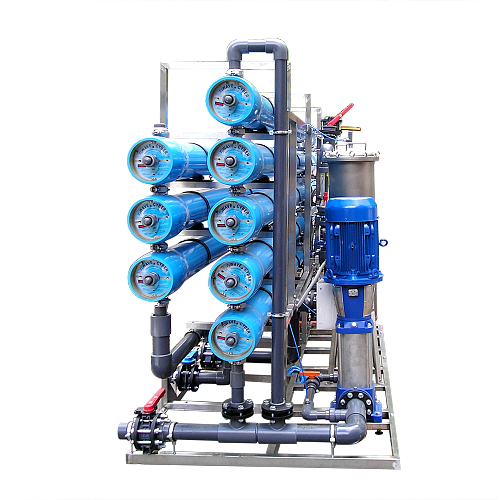

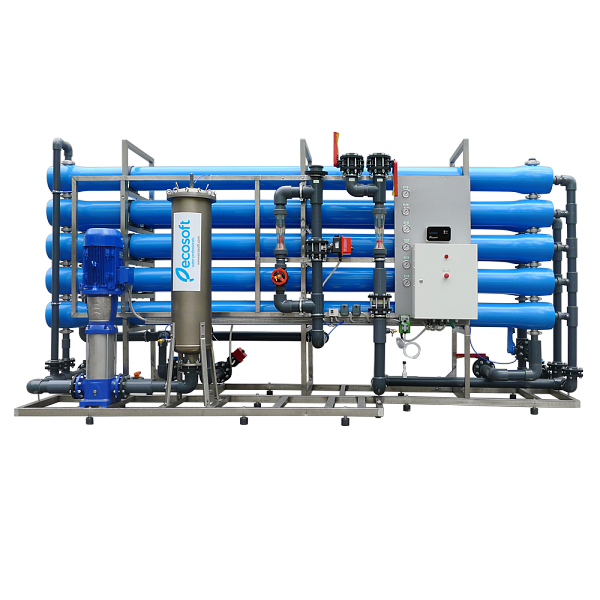

Industrial reverse osmosis system Ecosoft MO-16

Ecosoft MO-16 is a fully automated 16-19 m³/h reverse osmosis system. The equipment includes Grundfos high pressure pump, Dow Filmtec™ extra low energy membranes, Danfoss automated valves and Honeywell flow control valves.

The RO system is equipped with a controller and most necessary instrumentation. A range of options is available on request. Ecosoft RO systems offer great value in the following applications.

Applications		Benefits
	Steam boilers	Less boiler blowdown compared to ion exchange softened water
	Semiconductor manufacturing	Enhanced rejection of silica, boron, ammonia, and other impurities compared to other RO products
	Pharmaceutical manufacturing	Consistent rejection of pyrogens and toxic constituents
	Food processing	Enhanced Dow Filmtec™ membranes and raw water blending available optionally
	Chemical manufacturing	Purified water is requisite for most processes in chemical industry
	Heat and cooling circuits	Prevention of scaling and corrosion due to hardness  and other impurities
	Galvanic and electroplating	Used to obtain any grade of water for metal finishing
	Insulation glazing	Prevention of stains and scale on glass surfaces, lower detergent usage
	Textile industry	Used to obtain any grade of water for textile process
	Drinking water bottling	Heavy duty Dow Filmtec™ membranes for problem water with nitrate, ammonia, high TOC, high TDS available as option
	Agriculture	Demineralized water is most suitable for both plants and irrigation systems
	Fish farms	Optional raw water blending allows to fine tune TDS, hardness, and alkalinity to specific requirements
	Utility water treatment	RO water meets the EC Drinking Water Directive and protects pipes and valves against scaling, clogging and corrosion
	Laundry and car wash	Prevention of stains and scale, cleaner wash/laundry, lower detergent usage
	Desalination	Dow Filmtec™ XLE membranes and Grundfos® pumps offer lowest energy use per m3 permeate
